LMJ9080高压式喷砂机

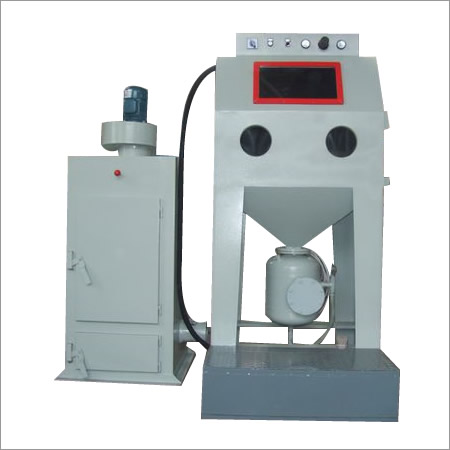

LMJ1010F高压式喷砂机
型号Model： 1010F加压式喷砂机 1010F Pressurizesandblasting apparatus
规格Work cabinet size： 工作舱内尺寸(mm) work cabinetsize (mm) 1000Х1000Х800
电源Power supply：380V 50HZ 重量 Weight：400KG
机器照明灯Machine illumination lamp： 220V 13W 节能灯220V 13W energysaving lamp
机器空气源Machineairsource： 5-8bar(kg/cm2),流量1.5m3/min 5-8bar(kg/cm2),flow rate 1.5m3/min
除尘电器： Machine air source 380v 50hz 2200w
特点： Dedust motor
1、设计新颖、结构科学合理、操作方便、加工性能优越；
Novelty design , scientific and logical structrue,simple operation,ecxellent processing performance.
2、喷砂速率快、撞击点深； High sandblasting speed,deep run point
3、压力罐部分采用新型研制的排气阀装置，清除了目前国内普通加压机容易出现的故障，特别减少了排气电磁阀的损坏；
By introducing newly developed exhaust valve device as pressure tank part to eliminate troubles , that present domestic normal pressurizer easily occur ,especially
4、配置抽风除尘分离系统、符合环保要求
1. Equipped with air drafe dedust swparation system,meet encvironmental protection require ments.
应用范围：Scope of application:
适用于大量中小型一般工件及高硬度工件的快速喷砂。如：脱腊铸造件、热处理工件、发动机配件、阀门、石材等。
Be applicable to quick sandblasting of mass middle and small general workpiece and high rigidity workpiece,e.g.dewax casting,heat treatment workpiece ,engine fittings, valve ,stone maerila etc.
