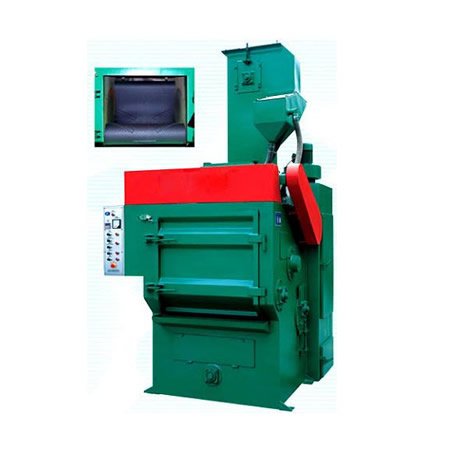

QZR50/120履带滚动式抛丸清理机
特点：
QZR设计新颖，外观美观。
1、 工作噪音小，灰尘少，生产效率高，适用于大中批量生产。
2、 弹丸可自动回收利用、耗料少，成本低。
3、 抛丸面积可辐射到工件内腔死角，效果均匀。
适用范围：同类型机器，型号：QZR100
Feature:
1、 Novelty design, goodly appearance;
2、 Low working noise, few dust, high production efficiency ,applicable to large and middle batch production.
3、 Shot are recyclable , low consumption .low cost.
4、 Shot blasting area can reach dead angle of wokpiece inner cabinet ,evenly spread.
Scope of application:
Same type machine model: QZR100
型号
Model QZR-50
抛丸轮数
Shot blasting wheel number 1
抛丸室内尺寸(mm)
Dimension of shot blasting room (mm) ¢500×650
抛丸室容量(m3)
Shot blasting capability(m3) 50L
抛丸能力
Shot blasting capability 50Kg＼min
提升分离量
Exalt separation quantity 2t＼h
丸砂分离方式
Shot sand separation mode Wind selection
集尘 风量
Dust collecting wind rate 2000m3＼h
总功率（包括除尘功率
Gross power (including dedust power) 5.84kw
工件单件重量
Single workpiece weight 5kg
